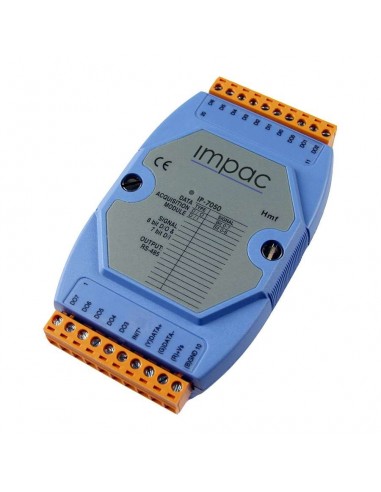

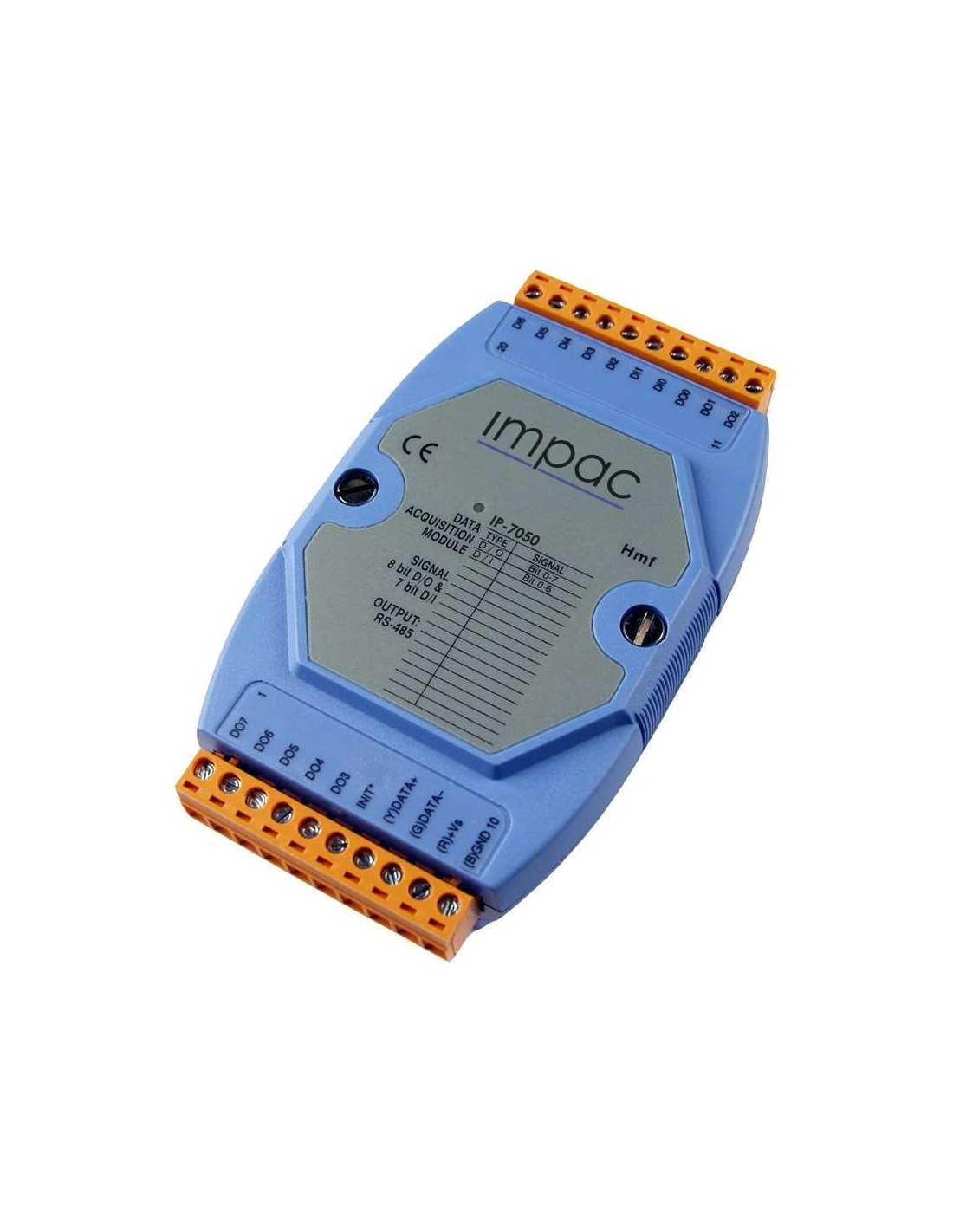

Módulo Entrada Digital 7 Canais 8 Saídas Digitais não isoladas RS-485 IP-7050
O Módulo Entrada Digital RS-485 IP-7050 oferece 7 canais de entrada digital e 8 canais de saída digital, não isolados.
O Módulo Entrada Digital 7 Canais 8 Saídas Digitais RS 485 IP-7050 suporta saída do tipo coletor usando um coletor aberto NPN e entrada do tipo fonte.
Todos os canais de entrada do Módulo RS-485 IP-7050 podem ser utilizados como contadores de 16 bits.
Módulo Entrada Digital 7 Canais Digitais 8 Saídas digitais não isoladas IP-7050 | |
---|---|
Interface | RS-485 |
Bias Resistor | No (An RS-485 master is required to provide the bias.) |
Format | (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1) |
Baud Rate | 1200 to 115200 bps |
Protocol | DCON |
Dual Watchdog | Yes, Module (1.6 Seconds), Communication (Programmable) |
System LED Indicator | Yes, 1 as Power/Communication Indicator |
Reverse Polarity Protection | Yes |
Input Range | +10 ~ +30 VDC |
Consumption | 0.4 W |
Dimensions (L x W x H) | 123 mm x 72 mm x 35 mm |
Installation | DIN-Rail or Wall Mounting |
Operating Temperature | -25 to +75°C |
Storage Temperature | -40 to +85°C |
Humidity | 10 to 95% RH, Non-condensing |
Digital Input/Counter | |
Channels | 7 |
Type | Dry Contact Wet Contact |
Dry Contact | ON Voltage Level OFF Voltage Level Effective Distance for Dry Contact |
Counters | Max. Count Max. Input Frequency Min. Pulse Width |
Input Impedance | 100 kΩ |
Digital Output | |
Channels | 8 |
Type | Open Collector |
Sink/Source (NPN/PNP) | Sink |
Load Voltage | +3.5 ~ 30 VDC |
Max. Load Current | 30 mA/Channel |
Power-on Value | Yes |
Safe Value | Yes |
Características sujeitas a alteração sem prévio aviso |
