Módulo Entrada Analógica Inteligente mV V mA 1 canal IP-7012

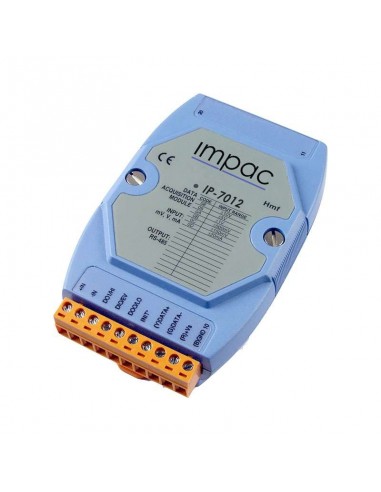

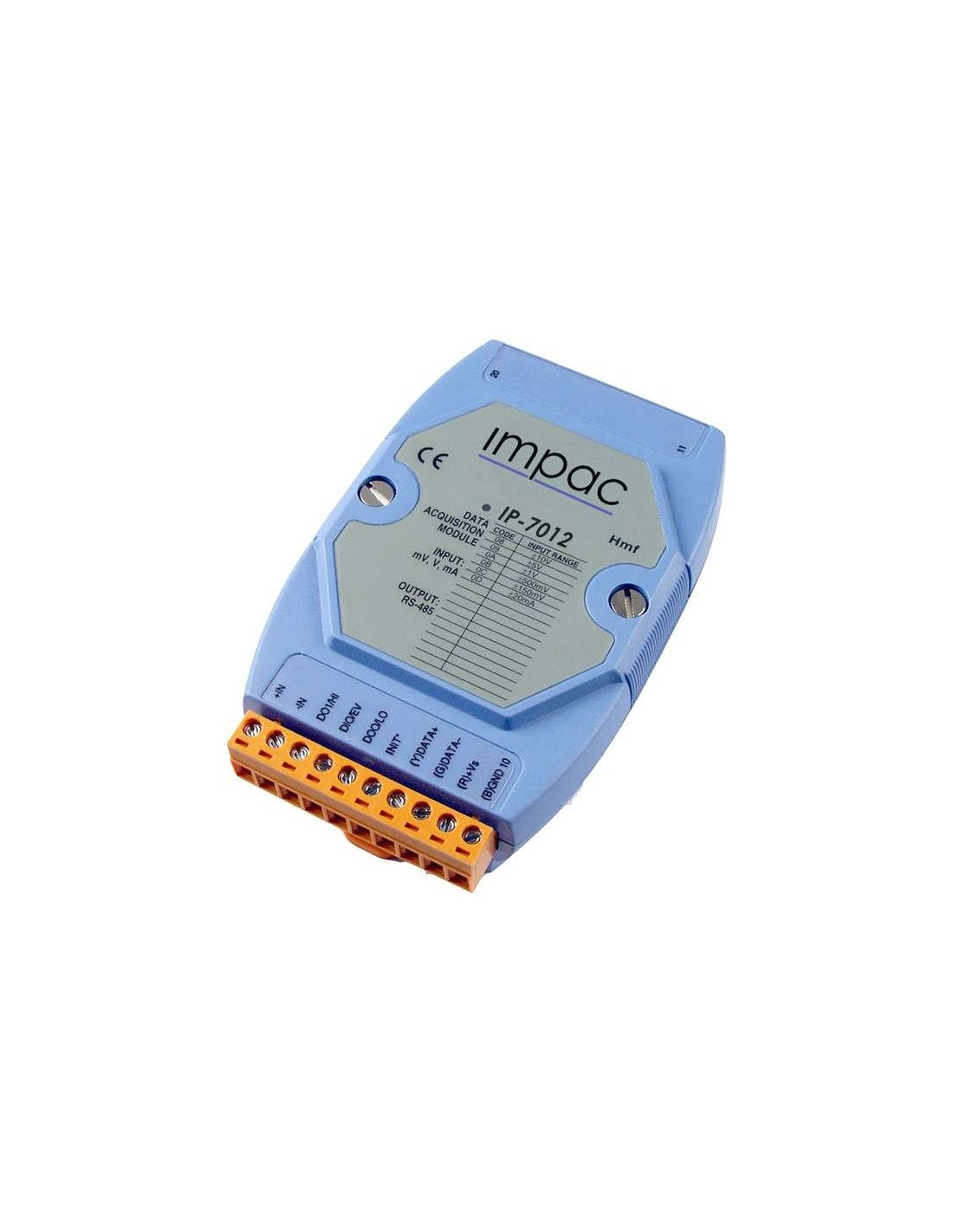

O Módulo Entrada Analógica Inteligente mV V mA 1 canal IP-7012 é um módulo de entrada analógica projetado para tipos de entrada de tensão e corrente. Além disso, o Módulo IP-7012 fornece 1 canal de entrada digital como um contador de eventos de 50 Hz e 2 canais de saída digital que podem ser usados como um alarme alto / baixo.
O Módulo Entrada Analógica Inteligente IP-7012 também possui isolamento intra-módulo de 3000 VDC.
Módulo Entrada Analógica Inteligente mV V mA 1 canal IP-7012 | |
---|---|
Interface | RS-485 |
Bias Resistor | No (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785.) |
Format | N, 8, 1 |
Baud Rate | 1200 to 115200 bps |
Protocol | DCON |
Dual Watchdog | Yes, Module (1.6 Seconds), Communication (Programmable) |
System LED Indicator | Yes, 1 as Power/Communication Indicator |
Intra-Module Isolation, Field-to-Logic | 3000 VDC |
ESD (IEC 61000-4-2) | ±2 kV Contact for each Terminal |
EFT (IEC 61000-4-4) | ±4 kV to Power Line |
Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
Reverse Polarity Protection | Yes |
Input Range | +10 ~ +30 VDC |
Consumption | 1.3 W |
Dimensions (L x W x H) | 123 mm x 72 mm x 35 mm |
Installation | DIN-Rail or Wall Mounting |
Operating Temperature | -25 to +75°C |
Storage Temperature | -40 to +85°C |
Humidity | 10 to 95% RH, Non-condensing |
Analog Input | |
Channels | 1 |
Wiring | Differential |
Sensor Types | ±150 mV, ±500 mV, ±1 V, ±5 V, ±10 V, ±20 mA (requires optional external 125 Ω resistor) |
Resolution | 16-bit |
Accuracy | 0.1% |
Sampling Rate | 10 Hz |
Input Impedance | 20 MΩ |
Common Voltage Protection | ±100 VDC |
Overvoltage Protection | ±120 VDC |
Digital Input | |
Channels | 1 |
Contact | Dry |
Sink/Source (NPN/PNP) | Source |
ON Voltage Level | Close to GND |
OFF Voltage Level | Open |
Counter | Yes, 50 Hz, 16-bit |
Input Impedance | 3 kΩ |
Overvoltage Protection | ±30 VDC |
Digital Output | |
Channels | 2 |
Type | Open Collector |
Sink/Source (NPN/PNP) | Sink |
Load Voltage | +3.5 ~ +30 VDC |
Max. Load Current | 30 mA/Channel |
Power-on Value | Yes |
Safe Value | Yes |
* Características sujeitas a alteração sem prévio aviso |
