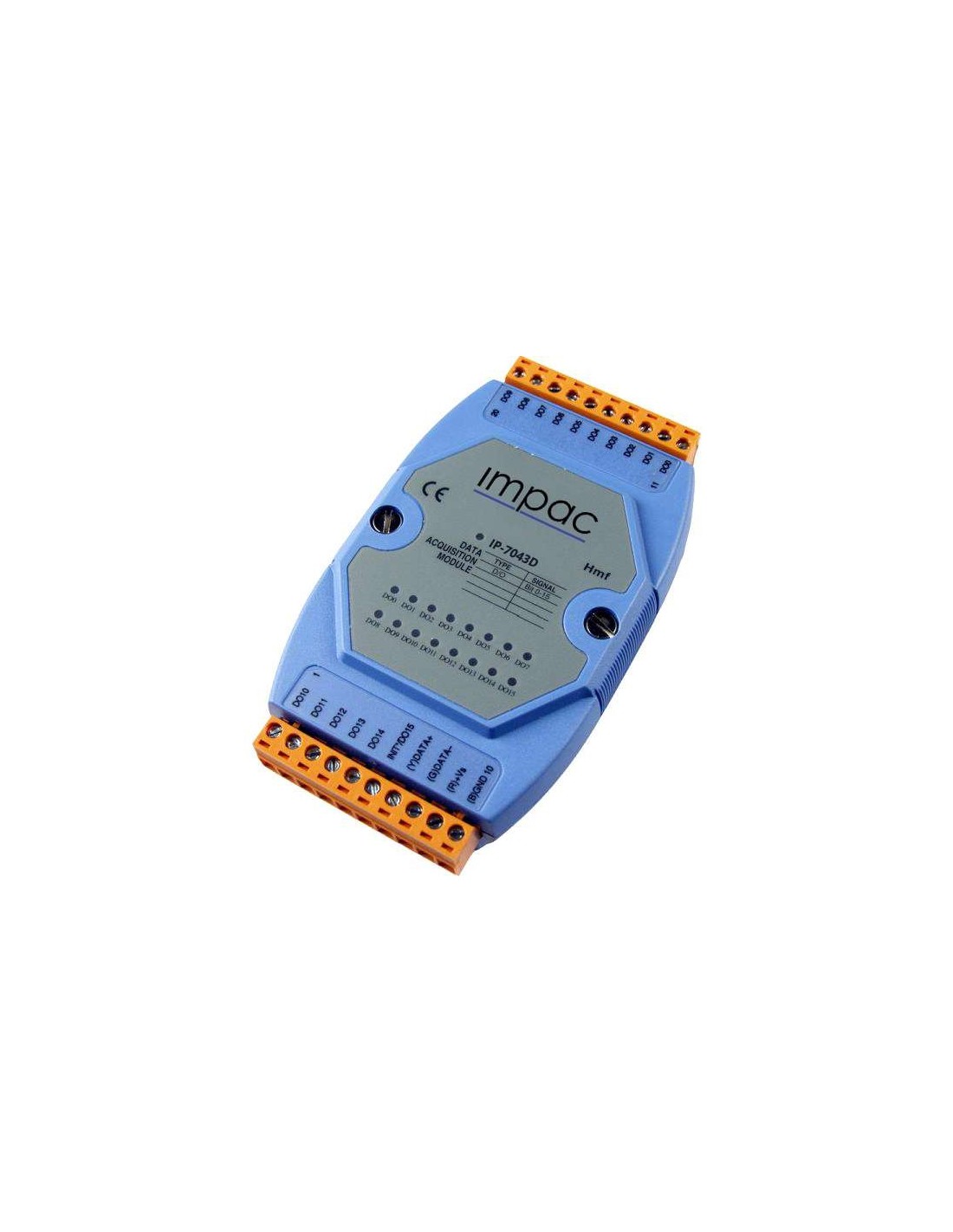

Módulo Saída Digital 16 Canais com Coletor Aberto IP-7043D
O Módulo Saída Digital 16 Canais com Coletor Aberto IP-7043D possui 16 canais de saída digital sem isolação do tipo coletor aberto.

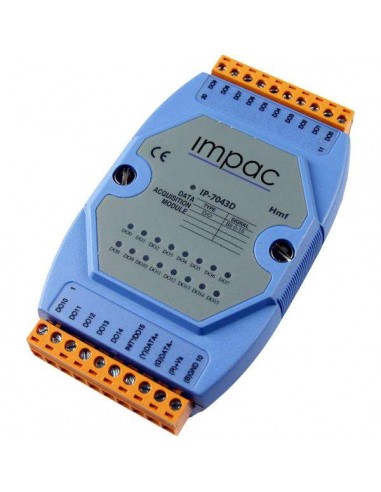

O Módulo Saída Digital com Coletor Aberto IP-7043D vem equipado com 16 indicadores de LED que pode ser utilizado para monitorar o status dos canais utilizados.
Módulo Saída Digital 16 Canais com Coletor Aberto IP-7043D | |
---|---|
Communication | |
Interface | RS-485 |
Bias Resistor | No (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785.) |
Format | (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1) |
Baud Rate 1200 to 115200 bps | 1200 to 115200 bps |
Protocol | DCON |
Dual Watchdog | Yes, Module (1.6 Seconds), Communication (Programmable) |
LED Indicators/Display | |
System LED Indicator | Yes, 1 as Power/Communication Indicator |
I/O LED Indicators | Yes, 16 LEDs as Digital Output Indicators |
Isolation | |
3750 Vrms | |
EMS Protection | |
ESD (IEC 61000-4-2) | ±2 kV Contact for each Terminal ±4 kV Air for Random Point |
EFT (IEC 61000-4-4) | ±2 kV for Power Line |
Power | |
Reverse Polarity Protection | Yes |
Input Range | +10 ~ +30 VDC |
Consumption | 1.1 W |
Mechanical | |
Dimensions (L x W x H) | 123 mm x 72 mm x 35 mm |
Installation | DIN-Rail or Wall Mounting |
Environment | |
Operating Temperature - | -25 to +75°C |
Storage Temperature | -40 to +85°C |
Humidity | 10 to 95% RH, Non-condensing |
Digital Output | |
Channels | 16 |
Type | Open Collector |
Sink/Source (NPN/PNP) | Sink |
Load Voltage | +10 ~ 30 VDC |
Max. Load Current | 100 mA/Channel |
Power-on Value | Yes |
Safe Value | Yes |
* Características sujeitas a alteração sem prévio aviso |
