Módulo Multifunção I/O RS-485 IP-7026

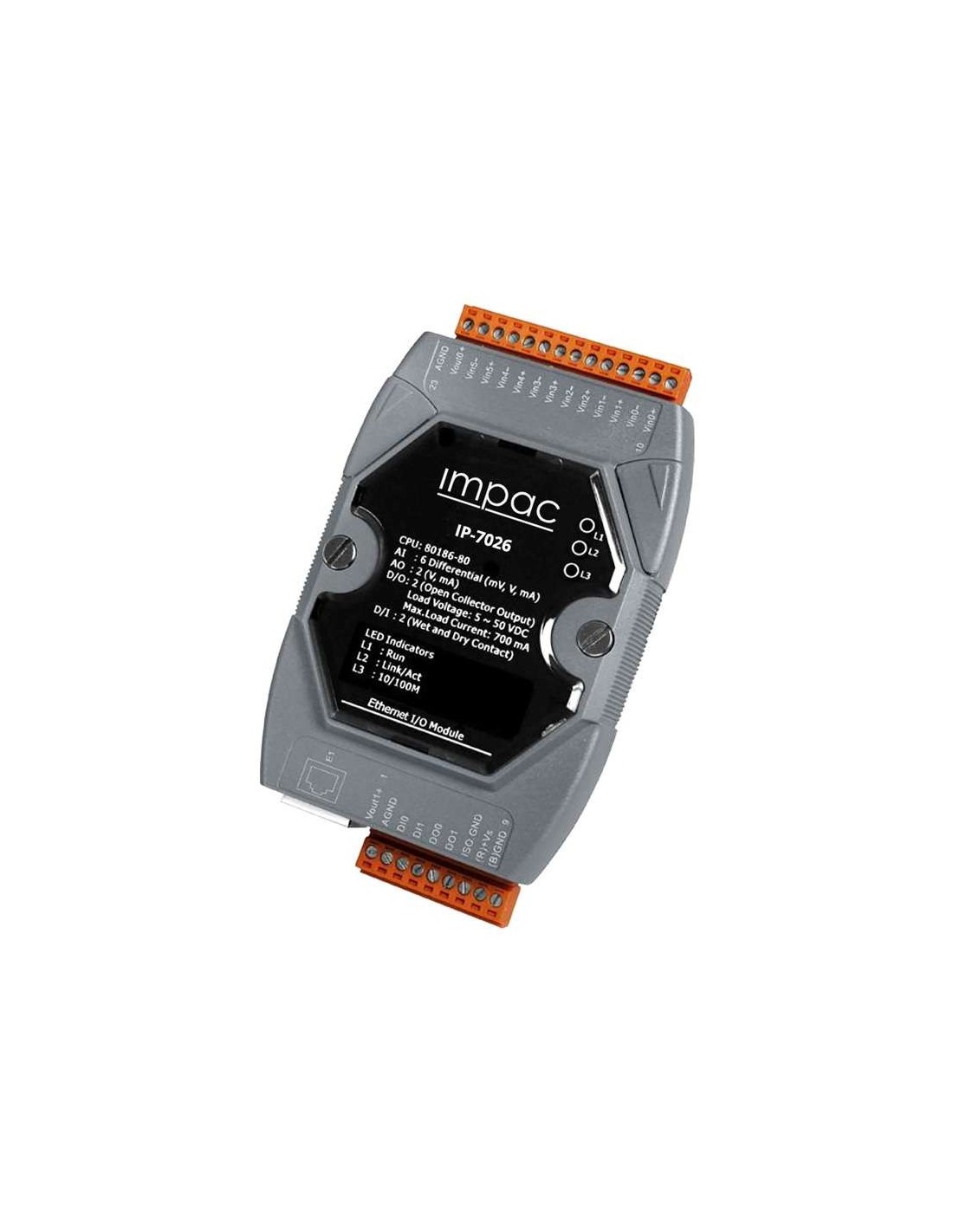

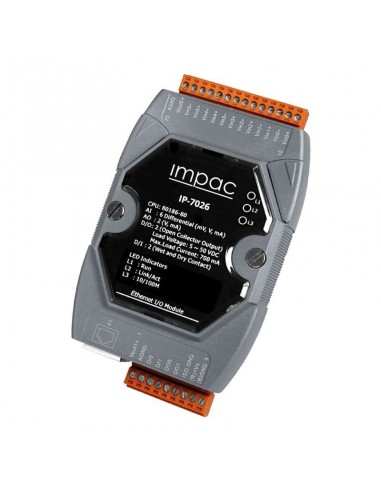

O Módulo Multifunção I/O IP-7026 é um módulo como o nome já diz, multifuncional com entradas analógicas de 6 canais, saídas analógicas de 2 canais, entradas digitais de 2 canais e saídas digitais de 2 canais.
Módulo Multifunção I/O RS-485 IP-7026
O Módulo Multifunção I/O IP-7026 é um módulo como o nome já diz, multifuncional com entradas analógicas de 6 canais, saídas analógicas de 2 canais, entradas digitais de 2 canais e saídas digitais de 2 canais.
Este Módulo Multifunção I/O RS-485 IP-7026 fornece várias entradas analógicas programáveis (+/- 500 mV, +/- 1 V, +/- 5 V, +/- 10 V, +/- 20 mA), e analógico saídas (+/- 5 V, +/- 10 V) .
Cada entrada analógica do módulo IP-7026 pode configurar uma faixa adequada com proteção de alta voltagem de 240 Vrms. Cada entrada/saída analógica pode ser programada para aceitar corrente ou tensão como entrada / saída, dependendo da posição do jumper correspondente.
| Módulo Multifunção I/O RS-485 IP-7026 | |
|---|---|
| Software | |
| Built-In Web Server | Yes |
| Web HMI | Yes |
| I/O Pair Connection | Yes |
| Communication | |
| Ethernet Port | 1 x RJ-45, 10/100 Base-TX |
| Protocol | Modbus/TCP, Modbus/UDP |
| Security | ID, Password and IP Filter |
| Dual Watchdog | Yes, Module (0.8 second), Communication (Programmable) |
| LED Indicators | |
| for System Running | Yes |
| for Ethernet Link/Act | Yes |
| 2-Way Isolation | |
| Ethernet | 1500 VDC |
| I/O | 2500 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal and ±8 kV Air for Random Point |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line Line |
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
| Power Requirements | |
| Reverse Polarity Protection | Yes |
| Powered from Terminal Block | 10 ~ 30 VDC |
| Consumption | 3.6 W (Max.) |
| Mechanical | |
| Dimensions (W x L x H) | 72 mm x 123 mm x 35 mm |
| Installation | DIN-Rail or Wall mounting |
| Environmental | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
|
* Características sujeitas a alteração sem prévio aviso |
|
| Analog Input | |
|---|---|
| Channels | 6 (Differential) |
| Type | +/-500 mV, +/-1V, +/-5 V, +/-10 V +0 mA ~ +20 mA, +/-20 mA, 4 ~ 20 mA (Jumper Selectable) |
| Individual Channel Configuration | Yes |
| Resolution | 16-bit |
| Sampling Rate | Normal Mode: 10 Samples/Second (Total) Fast Mode: 50 Samples/Second (Total) |
| Accuracy | Normal Mode: +/-0.1% Fast Mode: +/-0.5% or better |
| Zero Drift | +/-20 µV/°C |
| Span Drift | +/-25 ppm/°C |
| Overvoltage Protection | 240 Vrms |
| Overcurrent Protection | 50 mA Max. at 110 VDC/VAC Max. |
| Common Voltage Protection | ±200 VDC |
| Overcurrent Protection | Yes, 50 mA at 110 VDC |
| Virtual Channel to Channel Isolation | Yes, 400 VDC |
| Open Wire Detection for 4 ~ 20 mA | Yes |
| Input Impedance | Voltage: 2 MO Current: 125 O |
| Common Mode Rejection | 86 dB Min. |
| Normal Mode Rejection | 100 dB |
| Open Wire Detection | Yes, for 4 ~ 20 mA only |
| Virtual Channel to Channel Isolation | +/-400 VDC |
| Analog Output | |
| Channels | 2 |
| Type | +0 VDC ~ +5 VDC, +/-5 VDC, +0 VDC ~ +10 VDC, +/-10 VDC,+0 mA ~ +20 mA, +4 mA ~ +20 mA (Jumper Selectable) |
| Individual Channel Configuration | Yes |
| Resolution | 12-bit |
| Accuracy | +/-0.1% of FSR |
| Voltage Output Capabil | 20 mA @ 10 V |
| Current Load Resistance | 500 O |
| Open Wire Detect | Yes, for 4 ~ 20 mA only |
| Power-on Value | Yes, Programmable |
| Safe Value | Yes, Programmable |
| LED Indicators | |
| for System Running | Yes |
| for Ethernet Link/Act | Yes |
| 2-Way Isolation | |
| Ethernet | 1500 VDC |
| I/O | 2500 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal and ±8 kV Air for Random Point |
| EFT (IEC 61000-4-4) | ±4 kV for Power Line Line |
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
| Power Requirements | |
| Reverse Polarity Protection | Yes |
| Powered from Terminal Block | 10 ~ 30 VDC |
| Consumption | 3.6 W (Max.) |
| Mechanical | |
| Dimensions (W x L x H) | 72 mm x 123 mm x 35 mm |
| Installation | DIN-Rail or Wall mounting |
| Environmental | |
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
|
* Características sujeitas a alteração sem prévio aviso |
|
