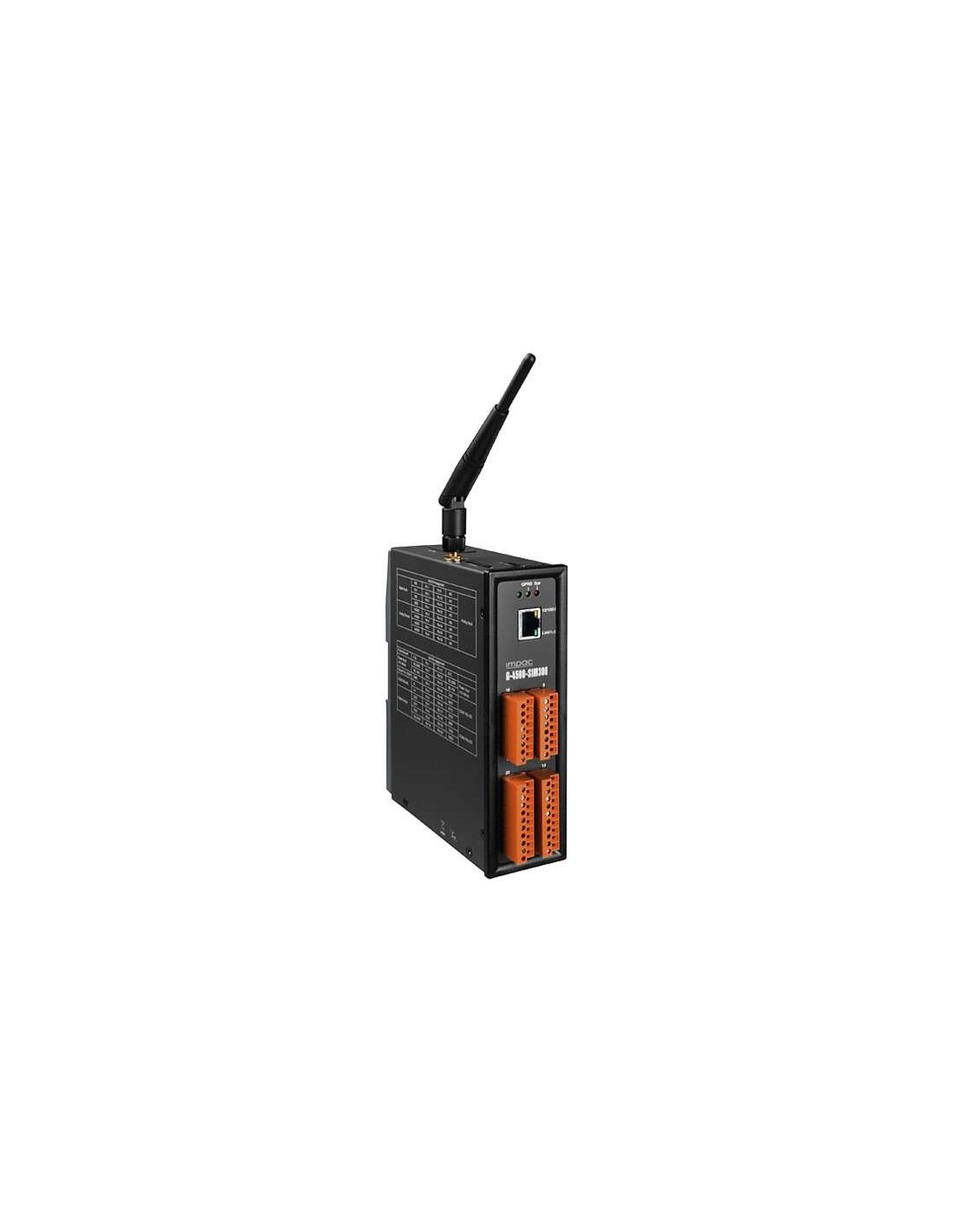

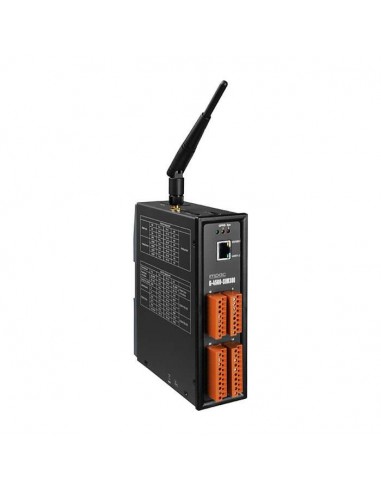

Controlador de Automação G-4500-SIM340
Controlador de Automação G-4500-SIM340
O Controlador de Automação G-4500-SIM340 possui 4 bandas que suporta GSM 850/900/1800/1900, interface Ethernet, 3 entradas digitais, 3 saídas digitais, 8 entradas analógicas, 2 portas RS-232 e 1 RS-485, muito útil para transferir dados por GPRS, SMS, Ethernet ou barramento serial.
O Controlador de Automação G-4500-SIM340 é utilizado para monitoramento hidrográfico, energia inteligente, sistema de relatório de medidor de fluxo e sistema de rastreamento de carro GPS.
Ao utilizar o Controlador de Automação G-4500-SIM340, uma máquina pode ser instalada praticamente em qualquer lugar, mas ainda conectada a um centro de suporte para sinalizar o desempenho ou a necessidade de manutenção. Os dados M2M melhorarão a qualidade do serviço e reduzirão os custos operacionais.
Controlador de Automação G-4500-SIM340 | |
---|---|
Item | |
CPU | 80 MHz internal microprocessor |
SRAM/Flash | 512K/512K , real time clock, watchdog timer |
NVRAM | 31 bytes, battery backup, data valid up to 10 years |
EEPROM | 16 KB, retention > 40 years. 1,000,000 erase/write cycles |
Comm. Interface | |
COM ports | COM1:5-wire RS-232; COM2: RS-485; COM3:3- wire RS-232 |
Ethernet | 10/100 Base-TX Ethernet controller |
GPRS Interface | |
Frequency Band | Quad-band 850/900/1800/1900 MHz |
GPRS connectivity | GPRS class 10/8; GPRS station class B |
DATA GPRS | Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max 42.8kbps |
SMS | MT, MO, CB, Text and PDU mode |
Power | |
Protection | Power reverse polarity protection |
Frame Ground Protection | ESD, Surge, EFT, Hi-Pot |
Power Requirement | 15W; Unregulated +10 VDC ~ +30 VDC |
Power Consumption | Idle: 75 mA @ 24 VDC; Data Link: 150 ~ 400 mA (peak) @ 24 VDC |
LED Indicators | |
System | Red |
GPRS | Yellow |
GPS | Green |
Mechanical | |
Casing | Metal |
Dimensions | 47 mm x 142 mm x 168 mm (W x L x H) |
Installation | DIN-Rall and Wall mount |
Environment | |
Operating Temperature | -20 ~ +70 °C |
Storage Temperature | -40 ~ +80 °C |
Humidity | 5~90% RH, non-condensing |
Digital Output | |
Output Channel | 3 |
Output Type | Open Collector (Sink/NPN) |
Load Voltage | +30 VDC max. |
Load Current | 100 mA max. |
Isolated Voltage | Non-isolated |
Digital Input | |
Input Channel | 3 |
Input Type | Source(Dry Type), Common Ground |
Off Voltage Level | +1 V max. |
On Voltage Level | +3.5 ~ +30 V |
Isolated Voltage | Non-isolated |
Analog Output | |
Input Channel | 8 |
Resolution | 12 - bit |
Input Range/Type | 0 ~ 20 mA |
Sample Rate | 1 KHz max. (Read one channel) |
* Características sujeitas a alteração sem prévio aviso |
